Hwashi Gantry Type Wire Mesh Welding Machine for Refrigerator Rack Frame

Name: Hwashi Gantry Type Wire Mesh Welding Machine for Refrigerator Rack Frame
Brand: HWASHI
Price: 1 USD

Quality Hwashi Gantry Type Wire Mesh Welding Machine for Refrigerator Rack Frame for sale

Brand Name : HWASHI

Model Number : WL-SQ-150K*2

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 30 - 45 working days after received your payment

Packaging Details : Sea worthy wooden package or PVC Film for FCL

Product Name : Hwashi Gantry Type Wire Mesh Welding Machine for Refrigerator Rack Frame

Dimension(L*W*H) : According to your product

Weight : According to your product

Core Components : PLC, Engine, Motor

Warranty : 1 Year

Welding Power Source : AC / MF DC

Contact Now

Product Description

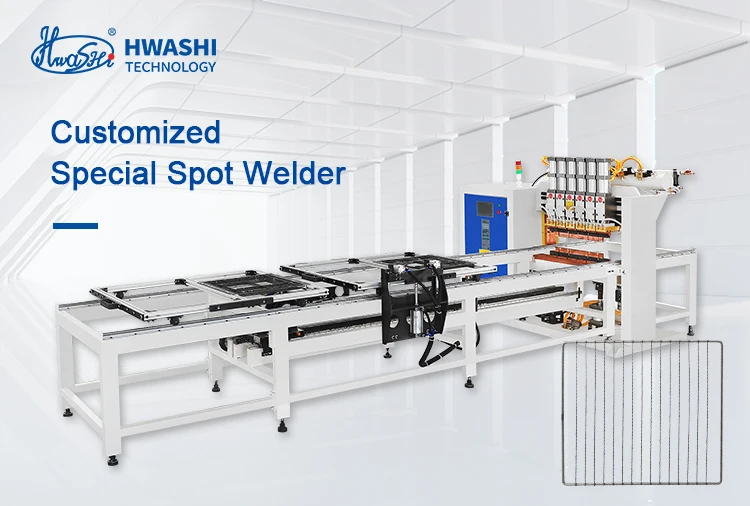

Hwashi Gantry Type Wire Mesh Welding Machine for Refrigerator Rack Frame

Hwashi Gantry-Type Towel Rack Refrigerator Wire Shelf Rack Welder,CNC Facility Welded Wire Rack/Rod Spot Welding Machine

Refrigerator Wire Shelf Production Line Machine Steel Wire Mesh Spot Welding Machine is H-type wire mesh multi-head automatic welding machine. It adopts ten electrodes and equips with automatic feeding system. The wire will be dropped to the fixture automatically to achieve full automatic loading. After that it will automatically execute the feeding and welding. Its one-way and double-layer feeding device can move forward and back automatically to finish the welding and the welding distance can be set at random .It is suitable for the batch production of wire mesh with multiple-points welding.

The welding manner is one-way double-layer automatic stepping feeding with 10 welding heads. The effective welding width is 1200mm while the effective welding length is 1000mm. This machine is composed of main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, electrical control system, cooling system, and PLC operation control system.

Automatic Feeding

Intelligent welding control system

Automatic welding by inputting coordinate data of welding position, welding current and other data.

Welding Heads and Fixtures

Processing and design according to the drawings of each wire shelf product. (customized)

Automatic Wire Filling System

You can put the precut straight wires into the hopper, then the wire filling machine will do the wire filling into the fixture automatically. It helps to increase the working efficiency and reduce labor force.

Automatic Double-layer Feeder

When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased.

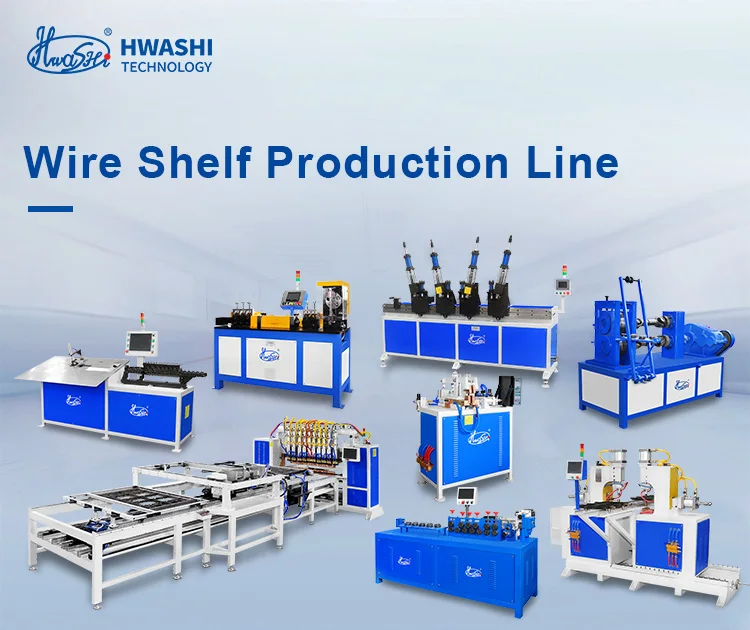

Production Line Machines

Other Machines Related to Wire Shelf Production Line Composition

We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.

Wire Flattening and Cutting Machine

This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.

Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.

High Speed Wire Straightenign and Cutting Machine

This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.

Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.

Application and samples
