Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator Making

  • 1
  • 2
  • 3

Brand Name : HWASHI

Model Number : WL-SW

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, D/P

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Condenser Wire High Speed Wire Straightening And Cutting Machine 1.1mm-9mm Motor Driven

Applicable Tube : Bundy tube

Working Air Pressure : 0.6-0.8Mpa

Tube Coil Specification : 4.76mm

Making Length : 50mm~3860mm

Output Power : 1.12KW

Standard : CE/CCC/ISO

Service Life : 8-10 years

Contact Now

Product Description

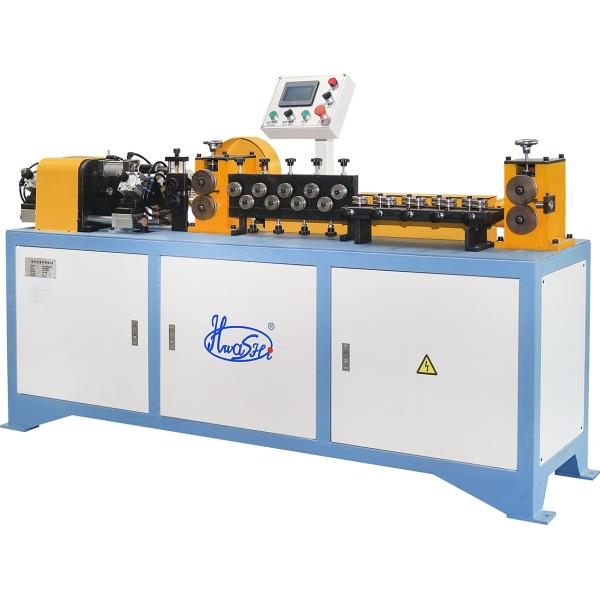

Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator Making
The steel pipe straightening machine is developed and designed by our company based on the advantages of various models. It is specially used for the straightening and cutting of Bondi tubes. The surface is free from scratches. The length of the main machine is automatically adjusted. The man-machine integrated touch screen control system can set the output preset and Lack of material alarm, easier adjustment and smaller error accuracy.
Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator Making
Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator Making
Technical Parameters
38Input Voltage
380V, Three-phase 50Hz
Applicable Tube
Bundy tube
Working Air Pressure
0.6-0.8Mpa
Tube Coil Specification
4.76mm
Tube Wall Thickness
0.4~1.5mm
Making Length
50mm~3860mm
Output Power
1.12KW
Control System
Full Automatic
Max Material Feeding Speed
60m/min
Precision
≤1000mm±0.5mm;
≤3000mm±1mm;
≤5000mm±1.5mm
Machine Dimension
2000x500x1500(mm)
Wire Tube Condenser Production Line
Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator MakingHwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator Making
Condenser Sample Information
Wire diameter
1.1-1.5mm
Bundy Tube Diameter
4.76/6.35/8mm
Bundy Tube Radius:
R15/R50/R100
Width range
420-600mm (customized)
Length range
450-1200mm (customized)
Automatic condenser welding machine related details
Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator Making
Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator Making
Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator Making
Application and samples
Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator MakingWe can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator Making
Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator Making
Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator MakingApplication scenarios
Production Line Composition
Other Machines Related to WOT Condender Production Line Composition
We can design the complete full automatic or semi automatic production line machine for refrigerator condenser.
