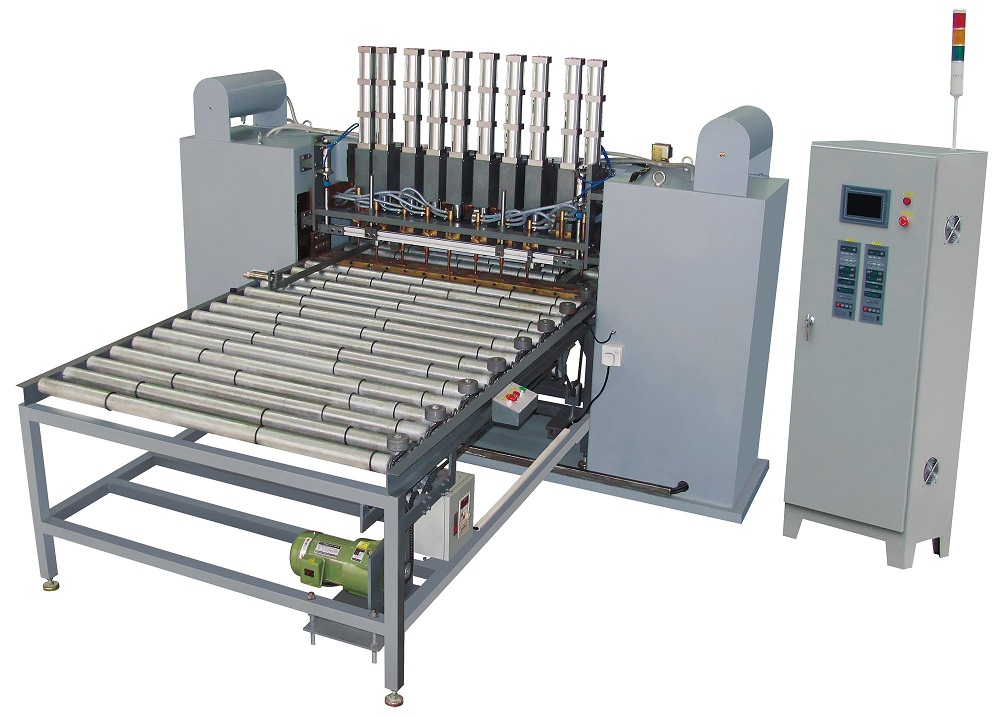

CNC System Table Multipoint Spot Welding Machine for Metal Plate
DESCRIPTION
Sheet mental gantry type multiple welding machine is composed of gantry type machine rack, weldig transformer, pneumatic transmission on device,electrical system and PLC touch screen operation control system.
The machine can customized according to your product size and your requirement.
SPECIFICATION
| S.N | Items | Wl-SQ-MF 120K |
| 1 | Input Voltage | 380V three phase |
| 2 | Power | 120KVAx2 |
| 3 | Input Current | 150A |
| 4 | Output Voltage | DC12.6V |
| 5 | Maximum Welding Current | 35000Ax2 |
| 6 | Maximum Welding Model | 101Kinds |
| 7 | Welding Electrode | 10 |
| 8 | Effective Welding Width | 1700mm |
| 9 | The size of working table | 3000mmx1700mm |
| 10 | The Maximum Distance of Locating Point | 600mm |
| 11 | The Minimum Distance of Locating Point | 100mm |
| 12 | Y Axis Servo Motor | 2 sets |
FEATURE
1. Main body: It adopts longitudinal stress body and good quality thick steel plate to ensure the strength and stability of the main body.
2. Welding Power Source: Choose the small power 150KW discharging transformer which is special used for resistance welding as the welding power source. To ensure the strength and stability of the welding,
3. Welding Control System: The secondary which is controlled by microcomputer will identify the output of current automatically in order to guarantee the constant current of each welding spot. In the meantime, the control system is equipped with the function of voltage compensation which is used for the automatic detection of the voltage change in order to ensure the constant strength of the welding spot.
***********************************************************************************************
We can design and manufacture the welding equipment according to your request/drawing, contact us please, we will offer you a suit solution and support you to success.
APPLICATION
1. Widely applied to industries in automobile, sheet mental, security door,cabinet, househould appliances, ect.
2. Mainly applied to welding the low carbon steel, low steel alloy, stainless steel, galvanized steel, sheet mental and round steel which are not easy welding with general welding machine.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
